Simplistic Multi-Tags Icon

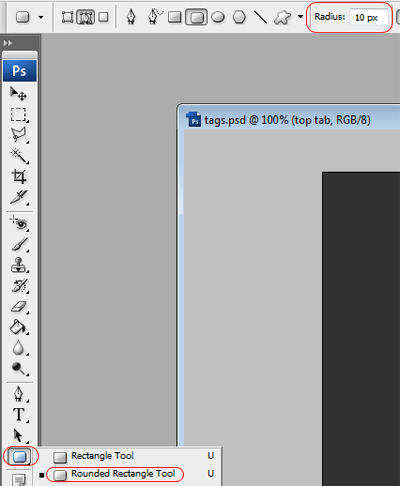

Create a new document any size with any background color, select the rounded rectangle change the radius to 10 pixels.

Simplistic Multi-Tags Icon image 1

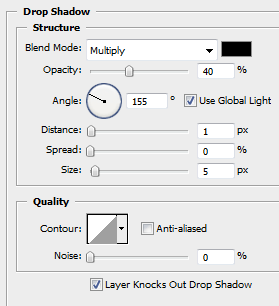

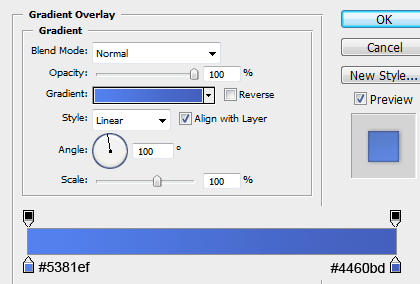

Draw out a thin rectangle in any color, then goto "edit > transfrom > rotate" rotate it very slightly. Once you've rotated it added these layer styles and set opacity to 85%.

Simplistic Multi-Tags Icon image 2

Simplistic Multi-Tags Icon image 3

Simplistic Multi-Tags Icon image 4

You should have something like this.

Simplistic Multi-Tags Icon image 5

Select the elliptical marquee tool and create a selection like this.

Simplistic Multi-Tags Icon image 6

Fill the selection with the color white, whilst holding the Ctrl key on the keyboard click your blue tab layer. Goto "select > inverse" then hit the delete key. Set layer opacity to 12% and add a layer mask. Drag a linear gradient from the bottom towards the top.

Simplistic Multi-Tags Icon image 7

Select the elliptical marquee tool once more and create a circle in the top left side of the tag.

Simplistic Multi-Tags Icon image 8

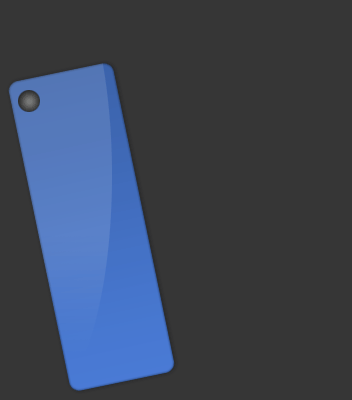

Finished the step by adding this gradient overlay to the circle.

Simplistic Multi-Tags Icon image 9

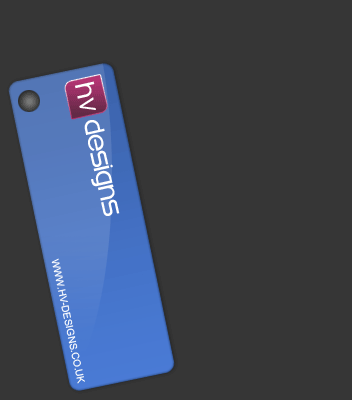

Add some content to your 1st tag like the image below.

Simplistic Multi-Tags Icon image 10

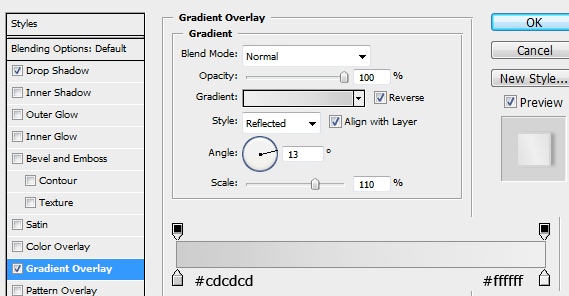

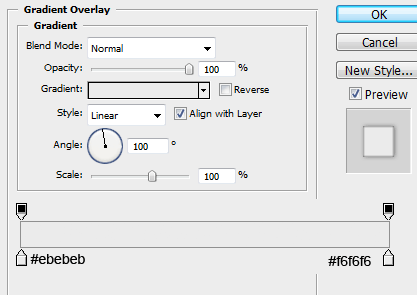

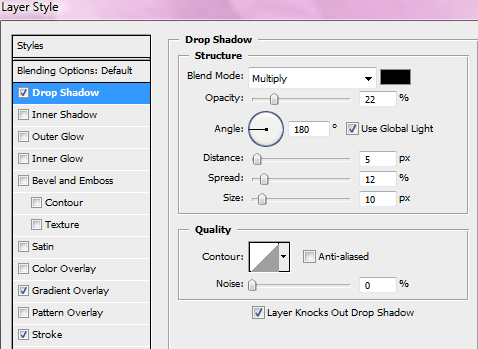

Create more rectangles underneath your main tag. Use the following layer styles for each tag. Remember to rotate each rectangle slightly, use the circle we created previously as a pivit point.

Simplistic Multi-Tags Icon image 11

Simplistic Multi-Tags Icon image 12

Simplistic Multi-Tags Icon image 13

You should have something like this.

Simplistic Multi-Tags Icon image 14

On each tag add something different, ive chosen some text, photoshop icons and the hv-designs logo.

Simplistic Multi-Tags Icon image 15

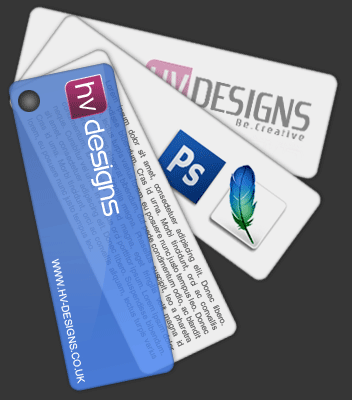

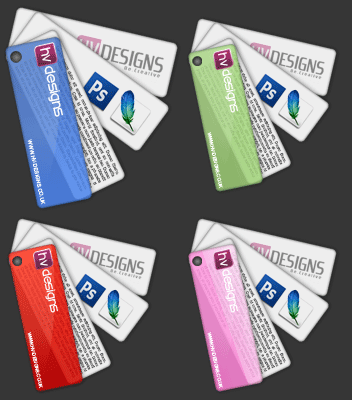

Simplistic Multi-Tags Icon Tutorial: Final Result

Creating a Ring of Fire from Scratch

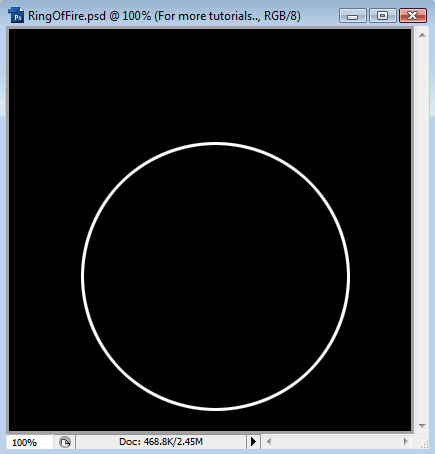

We will begin with a blank canvas of 400x400px, with a black background. Then create a big circle selection with the Elliptical Marquee tool, and with White chosen as the foreground color, right-click the selection and choose Stroke. I did 3px, Center:

Creating a Ring of Fire from Scratch image 1

Now, duplicate this layuer by right-clicking it in the Layer window and clicking Duplicate Layer. Hide the top layer and go back to the original. Goto Filters > Stylize > Wind. For the options, choose Wind and From the Right:

Creating a Ring of Fire from Scratch image 2

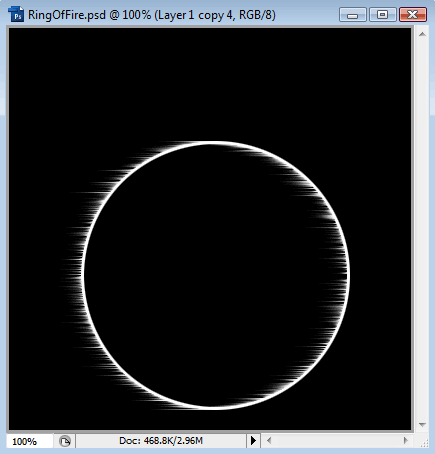

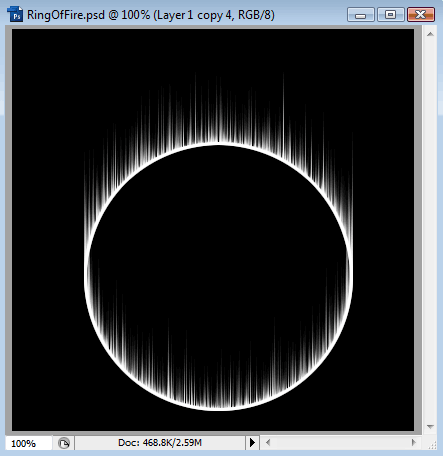

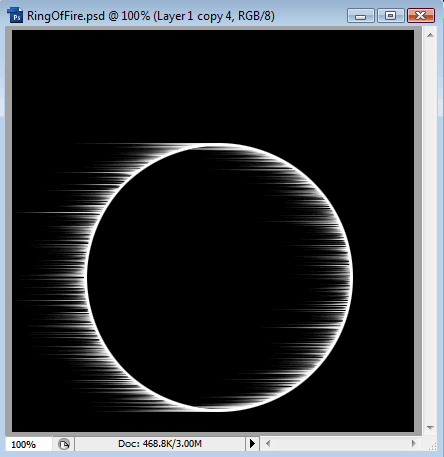

Repeat this filter as many times as you like, by pressing Ctrl+F. You may find you need to move the circle more-over to the right of the canvas as to not cut off the top of the wind strokes. I applied the filter twice:

Creating a Ring of Fire from Scratch image 3

Now goto Edit > Transform > Rotate, and rotate it 90° Clockwise so it is the right way up (Tip: Hold Shift while rotating to rotate in set increments). Then Ctrl-click the original layer with the circle still on it to make a selection of it, and choose the Move tool. Now click on the following align buttons (with the wind layer selected) on the Move toolbar to re-align the two layers:

Creating a Ring of Fire from Scratch image 4

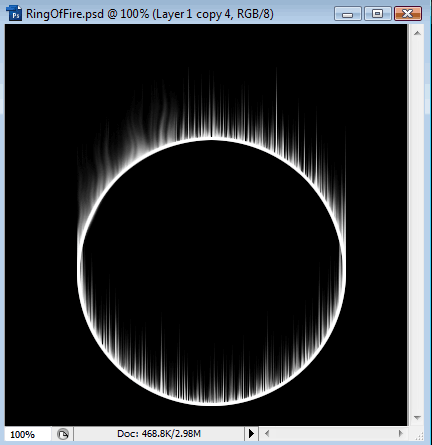

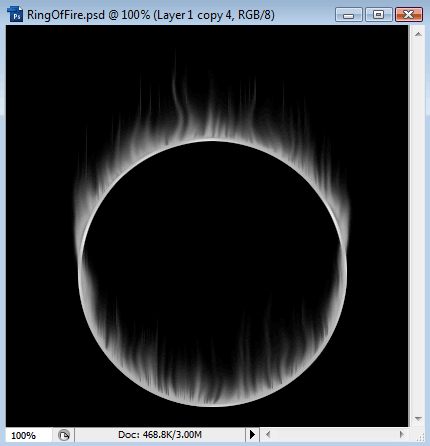

With all layers now visible, we should have something like this:

Creating a Ring of Fire from Scratch image 5

Next, we want to make the flames more realistic. Two ways to do this are: 1, use the Liquify and Blur filters, or 2, use the Blur tool. We will cover the Blur tool - go ahead and choose the Blur tool from the toolbox. Choose a soft brush and a Strength of 50%. Now use this brush to go around the circle, smudging and bending the flames slightly:

Creating a Ring of Fire from Scratch image 6

Once completed, we should have something like this:

Creating a Ring of Fire from Scratch image 7

Now let's add some color. Goto Image > Adjustments > Hue/Saturation. Experiment with the sliders, and make sure the Colorize check box is checked, to get the color of flames you desire:

Creating a Ring of Fire from Scratch image 8

Now duplicate this layer and experiment with the top layer's blending mode. This is Color Burn:

Creating a Ring of Fire from Scratch image 9

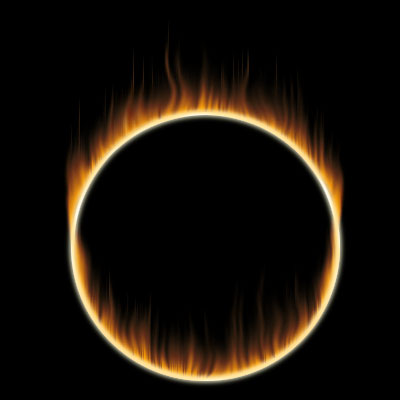

Finally, duplicate the original layer (the white circle) and move it to the top of the composition. Add an Outer Glow layer style to it and use Filter > Blur > Gaussian blur to make it look like this:

Creating a Ring of Fire from Scratch Tutorial: Final Result

And as always, please experiment with PhotoShop to get the best results.

Painting Text onto Wood

Using a displacement map in Photoshop can create some really cool effects. Today, we'll use a displacement map to make some text appear as if it is painted onto wood. There are many different surfaces you can use for this. Brick works well also. With a quick Google search you can find many different textures and surfaces to use.

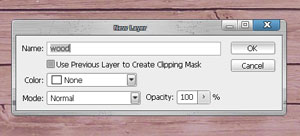

Let's start by importing our wood image into Photoshop. Double click on the background layer in the layers palette and turn the background into a layer and name it wood.

Painting Text onto Wood image 1 Painting Text onto Wood image 2

Next select the type tool and create your text on top of the wood layer. I'm using a maroon color #6f0202. Use a thick font such as Impact. Give the text a slight tilt by typing ctrl + t which will bring up the transform tool:

Painting Text onto Wood image 3 Painting Text onto Wood image 4

In the layers palette, right click on the wood layer and duplicate it. Drag the copy below the wood layer and type shift + ctrl + u to desaturate it. Alternatively, you can desaturate by going to Image>Adjustments>Desaturate .

Painting Text onto Wood image 5

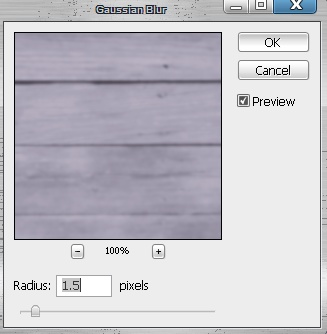

Copy this new desaturated layer to a new grayscale document. This will be the displacement map. We have to apply a Gaussian blur to the displacement map (grayscale document we just created) to soften the wood or else the edges of the text will appear too grainy. Apply a Guassian blur by going to filter>blur>guassian blur. If you're using the wood image I supplied, set the radius to 1.5

Painting Text onto Wood image 6

Otherwise you'll have to experiment. The amount of blur depends on the image you use and how busy the surface texture is. Save the document as displace.psd. Note: Photoshop uses the .psd format for displacement images.

Back on the original document, select the text layer and go to filter>distort>displace. It asks you to rasterize the text, select OK. When the displace window pops up, change horizontal and vertical scale to 20 and click OK.

Painting Text onto Wood image 7

A "choose displacement map" window appears. Select the displace.psd we just created. Back in the layers palette change the blend mode of the text layer to hard light and set the opacity to about 70% and your finished.

Painting Text onto Wood Tutorial: Final Result

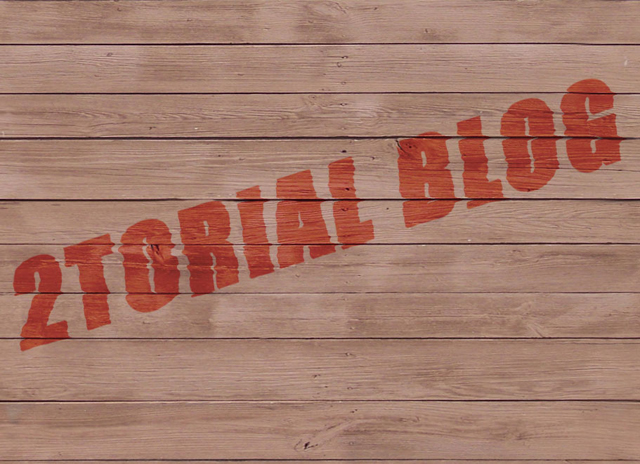

For a more weathered effect, set the blend mode to overlay and adjust the opacity to about 60%.

Painting Text onto Wood image 9

Ripped Paper Effect

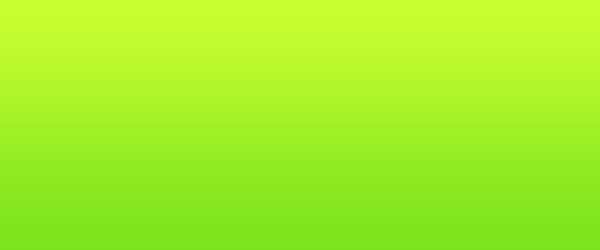

Create a new document what ever size you desire im going to be using a canvas size of 600 x 250 pixels. Double click your background layer to unlock it, unlocking the layer will make it editable. Add a simple gradient overlay to your background layer, im going for a greeny gradient.

Ripped Paper Effect image 1

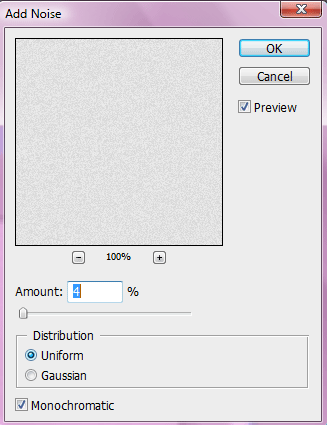

Create a new layer above your background layer and label it "grey canvas" fill it with the color #E1E1E1. Now goto "filter > noise > add noise" use the settings below.

Ripped Paper Effect image 2

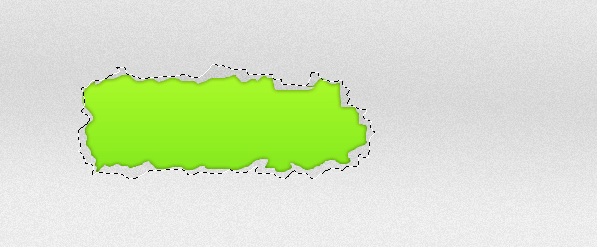

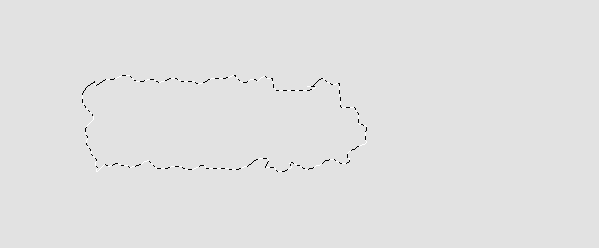

Select the lasso tool and randomly create a hole in the grey canvas.

Ripped Paper Effect image 3

Hit the delete key once the selection has been made then add this layer style to the "grey canvas" layer.

Ripped Paper Effect image 4

You should have something like this.

Ripped Paper Effect image 5

Create a new layer above your grey canvas layer called "white canvas layer". Fill the canvas with the color white, select the lasso tool once again and randomly draw another hole, i might help if you lower the opacity abit as you want it rougly the same shape but alittle bit bigger. Ive set my opacity to 35%.

Ripped Paper Effect image 6

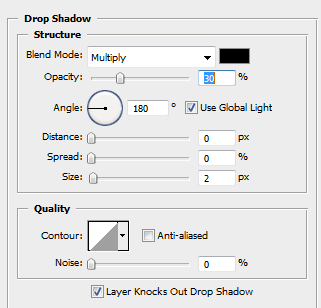

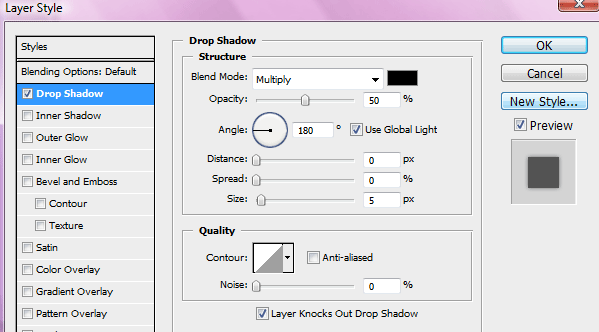

Hit the delete key once the selection has been made then set opacity back to 100% then add this drop shadow using the settings below.

Ripped Paper Effect image 7

You should have something like this.

Ripped Paper Effect image 8

Now go here and download the paper texture. Once downloaded add it to a layer above the white canvas layer. With the magic wand tool select the hole you previously cut on the white canvas layer, select the paper texture layer and hit delete. Set paper texture layer opacity to 40%.

Ripped Paper Effect image 9

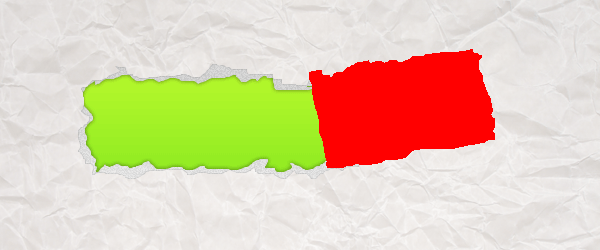

Next select the rectangular marquee tool and create a small rectangle roughly the same height as your ripped hole, fill with the color white. With the lasso tool just randomly cut around the edges of the rectangle once a complete selection has been made goto "select > inverse" then hit the delete key, heres mine shown in red.

Ripped Paper Effect image 10

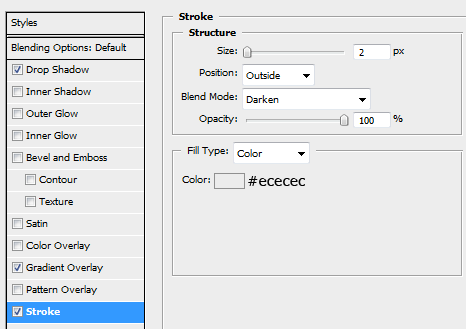

Now add these layer styles also label your layer "torn paper".

Ripped Paper Effect image 11

Ripped Paper Effect image 12

Ripped Paper Effect image 13

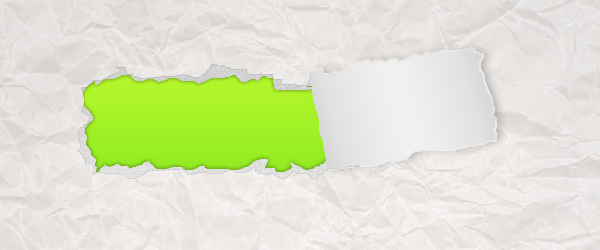

Slighty angle your torn paper layer using the free transform layer (CTRL - T). You should have something like this.

Ripped Paper Effect image 14

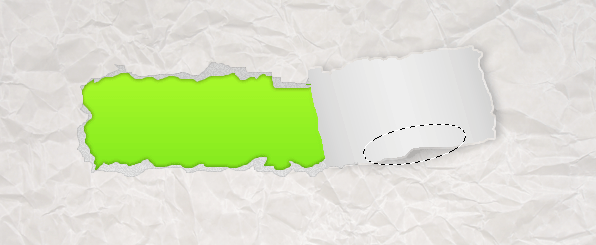

Underneath your torn paper layer create a circle using the elliptical marquee tool, fill with the color black. Goto "filter > blur > guassian blur" blur by 7 pixels and set layer opacity to 15%.

Ripped Paper Effect image 15

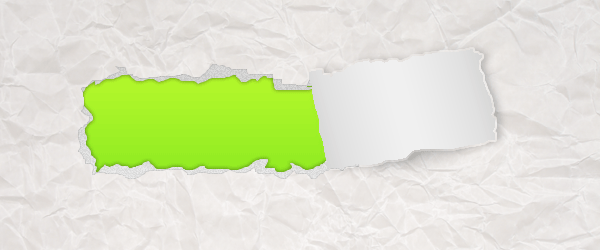

You should have something like this.

Ripped Paper Effect image 16

Thats it, now add something between your background layer and grey canvas layer.

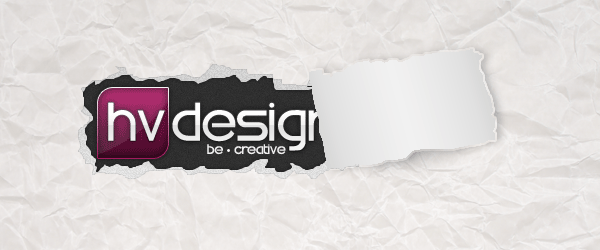

Ripped Paper Effect Tutorial: Final Result
